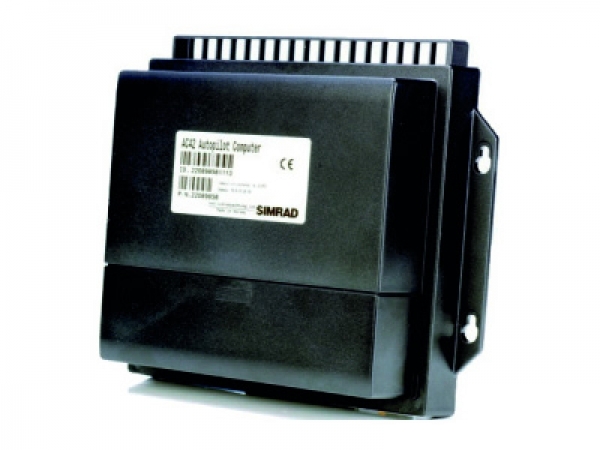

SIMRAD AC42 Autopilot Computer
The brains behind the brawn, the AC42 is an essential component in your AP24/28 autopilot system. It contains the steering computer and electronics for the drive unit motor and clutch whilst also acting as an interface to other system components.
 |
Overview
Ø Robust & Precise Steering Performance
Ø High Current Rated - 30 Amp Continuous
Ø Used on larger boats, typical above 40ft (13m)
Ø SimNet High Speed Data Networking
Ø NMEA2000 Heading Sensor Inputs
Specifications
Technical/Environmental |
|
| Product Width [mm] | 210 |
| Product Height [mm] | 180 |
| Product Depth [mm] | 60 |
| Weight [kg] | 3 |
| Product Width | 210 mm / 8.3 in |
| Product Depth | 60 mm / 2.4 in |
| Product Height | 180 mm / 7.1 in |
| Product Weight | 2.8 kg / 6.2 lbs |
Autopilot/Auto-Steering |
|
| Rudder Angle Bar Graph | True |
| Automatic Turn Patterns | True |
| Course Change Rotary Knob | True |
| Depth Contour Tracking | True |
| DODGE | True |
| Follow Up Power Steering | True |
| Heading Capture In Turns | True |
| +/- 1 degree keys [D or S] | D |
| Remote Station Lock | True |
| +/- 10 degree keys [D or S] | D |
Other |
|
| Dedicated Mode Keys | True |
