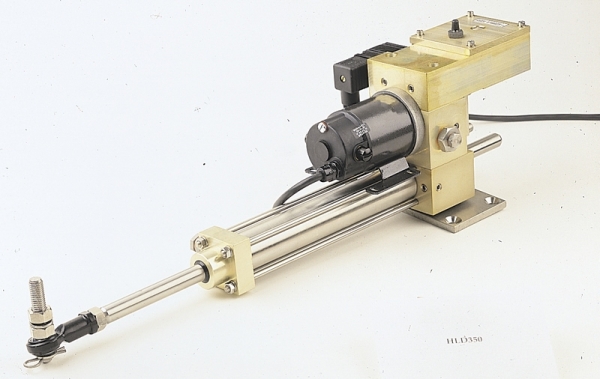

SIMRAD HLD350 Drive Unit
The HLD350 is a hydraulic linear drive designed for smaller boats with mechanical steering systems. It works in conjunction with a Simrad AC12 autopilot computer as part of an accurate auto-steering system.
 |
Overview
Specifications
Ø Highly Accurate
Minor incremental adjustments provide a smooth auto-steering experience.Ø Powerful
Outstanding performance even under heavy loads.Ø Direct Rudder Connection
Ensures the safest passage as the linear drive can be used even if the hand steering should fail.Ø By-Pass Valve
Allows you to use the helm with little back drive force when the autopilot is switched off.Ø 200mm (7.9in) Stroke
Ø 350 kg (770lbs) Thrust
Specifications
Information |
|
| Warranty period | AC10 |
Power |
|
| Power Supply (Supply Voltage) | 12V (2.5-6A) |
Autopilot/Auto-Steering |
|
| Max Stroke | 200 |
| Max Torque [Nm] | 610 |
| Peak Thrust | 350 |
| Drive Unit Max Thrust | 350 |
| Drive Unit Tiller Arm [mm] | 175 |
| Max Boat Displacement [tons] | 10 |
