SIMRAD Sailboat Autopilot SD10 Drive Unit

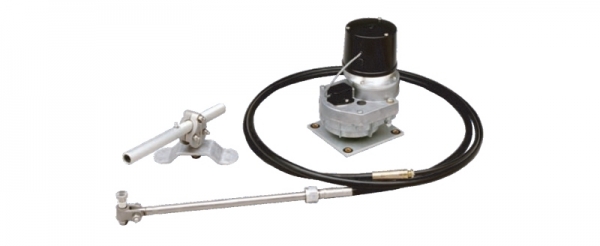

The SD10 is a mechanical drive unit featuring built-in rudder feedback for sailboats between 25ft and 37ft. The SD10 partners with the Simrad AC12 autopilot computer as part of an autopilot system. (Access to a quadrant or tiller is required).
 |
Overview
Specifications
Ø Highly Accurate
Minor incremental adjustments provide a smooth auto-steering experience.Ø Powerful
180kg of cable thrust ensures the rudder moves, even under heavy loads.Ø Easy & Economical
Reduce the price of your installation with this cost effective package.Ø 12V DC Power Supply
Ø Integrated Rudder Feedback
The built-in rudder feedback unit ensures gentle and accurate steering.Ø Simrad Yachting Construction
Brutally strong and built to withstand the environment.Specifications
Power |
|
| Power Consumption | Peak power: 7 A Clutch Circuit Power: 0.85 A |
| Power Supply (Supply Voltage) | 12V DC |
Autopilot/Auto-Steering |
|
| Max Boat Length [m] | 11 |
| Max Stroke | 305 |
| Max Torque [Nm] | 450 |
| Peak Thrust | 180 kg (from cable |
| Max Boat Displacement [tons] | 6500 |
Technical/Environmental |
|
| Product Width [mm] | 150 |
| Product Height [mm] | 225 |
| Product Depth [mm] | 150 |
| Weight [kg] | 4 |
